Printable Calendered Etched Glass Film

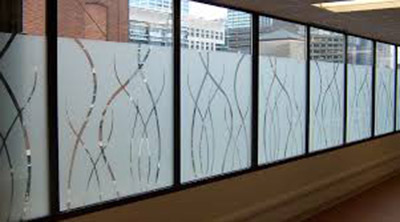

Decorative etched glass film can enhance the aesthetic of your workspace or office. Ever Etched Cal is a printable calendered etched glass vinyl with FLITE technology. Designed to be applied dry, the combined benefits of FLITE Technology and air channels will have installers experiencing repositionability while virtually eliminating bubbles and wrinkles from forming. A dry application technique promotes a mess-free environment during and post-application and eliminates the use of application fluid. This technique allows for an on-the-spot completed install; no next-day follow up needed! Ever Etched Cal is the best value etched glass film on the market.

Arlon Ever Etched Cal Product Description

Best value printable calendered etched glass film on the market
Dry application technique results in a faster and cleaner process
FLITE Technology® allows repositionability of graphics with ease
Ideal for interior and exterior applications on glass, windows, mirrors, partitions, and displays
Compatible with Eco-Solvent*, Solvent*, Latex, and UV print systems

Property	Test Methods	Typical Value
Surface Finish	Gloss Meter 60° Reflection	6 to 20 Gloss Units
Thickness	Micrometer, Federal Bench Type	3-mil (75 micron)
Tensile Strength	Tensile Tester with 2-in (51 mm) jaw separation; crosshead speed of 12 in/min. (5.1 mm/s), web direction	≥ 10 lb/in	≥ 1.79 kg/cm
Elongation	Instron Tensile Tester as above	≥ 150%
Shelf Life (In Box)	Ideal storage temperature 70°F (21°C) and 50% relative humidity	2 years from factory shipment
Application Temperature Range	On clean, dry substrate	60°F to 90°F	10°C to 30°C
Service Temperature Range	Applied to etched aluminum panels 24 hours prior to testing. 100% relative humidity 100° (38°) for 500 hours	40°F to 100°F	4.5°C to 37°C
Dimensional Stability	158°F (70°C), 48 hours aging	10-mil to 30-mil	0.25 mm to 0.75 mm
Peel Adhesion	PSTC-1, 15 min, 70°F (21°C)	1.6 lb/in	0.30 kg/cm
Liner Release	TLMI Release at 90°, 300 in/min (760cm/min)	90 g/2 in	20 g/cm
