CWT makes laminating tables to fit anyone's application and budget. The CWT Advantage series is a price conscious, yet robust table with all the necessary features. The Regular Series is a little more heavy duty and offers larger size options. The Premium Series offers advances features such as electronic height adjustment, a lighted table. and roll holders.
All CWT Laminating tables give you greater access to the work area since it does not employ an overhead gantry above the roller.

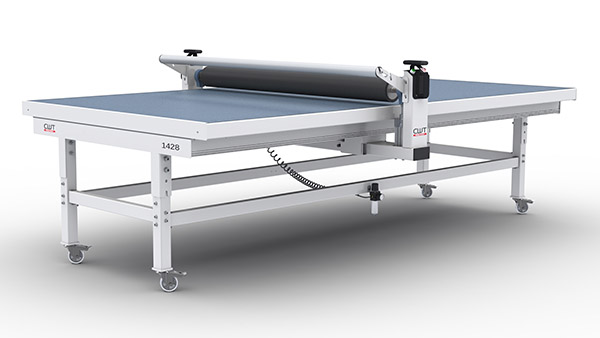

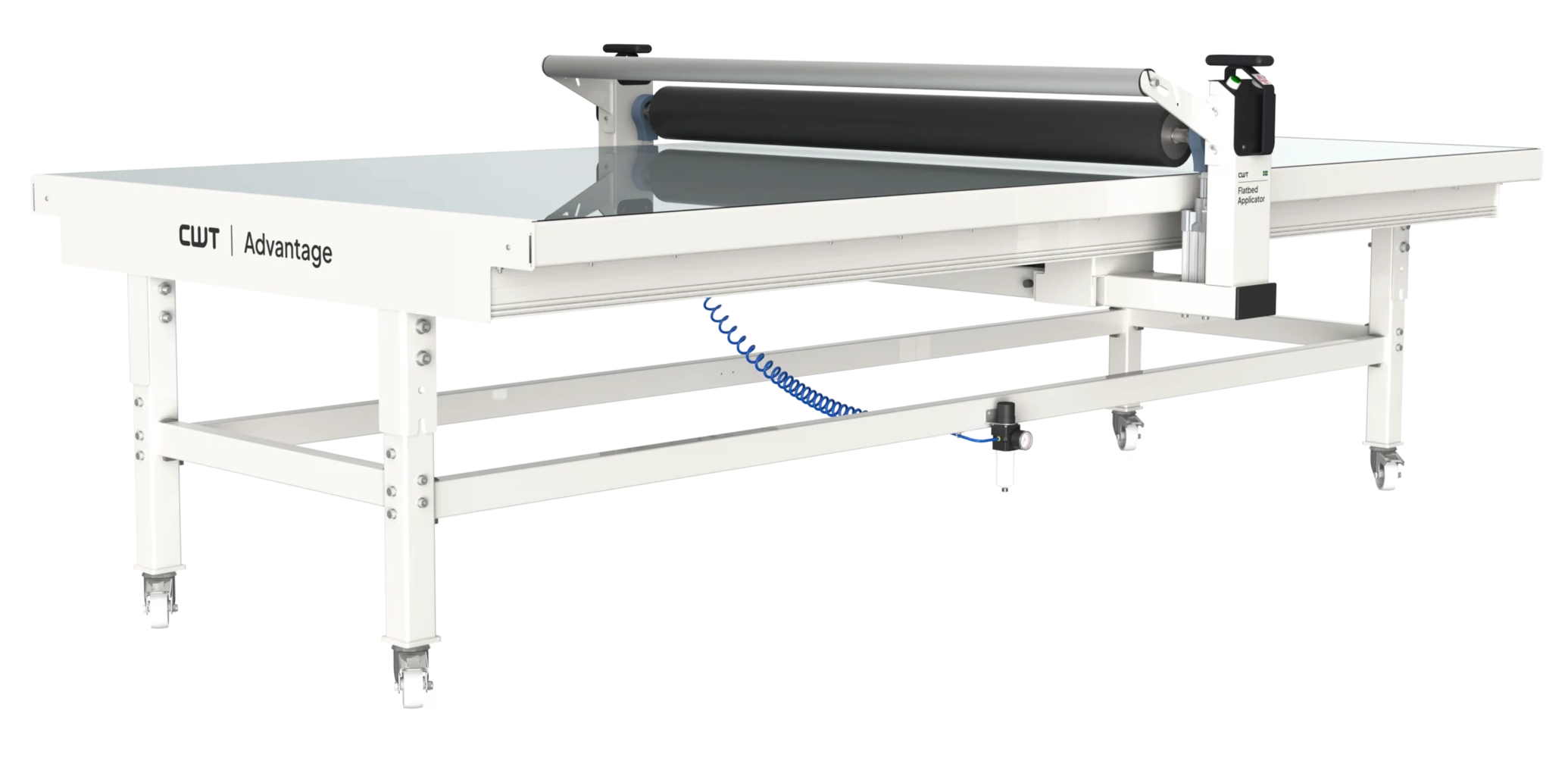

Compact yet robust, the CWT Advantage Series is designed for smaller spaces and entry-level applications. It delivers exceptional value, providing affordable access to flatbed technology without compromising on quality. The CWT 1016 and CWT 1428 are ideal for producing smaller signs, posters, and road signs. The newly released CWT 1736 Advantage, the largest model in our Advantage series, offers the perfect size for sign-makers and printing companies looking for enhanced capability and efficiency. 3 year warranty standard on all models.
| 1016 | 1428 | 1736 | |
|---|---|---|---|
| Table Size | 3'3" x 5'4" | 4'9" x 9'4" | 5'8" x 11'3" |
| Working Area | 3'1" x 4'5" | 4'7" x 8'5" | 5'5" x 11"1" |
| Overall Size | 3'11" x 5'4" | 5'11" x 9'4" | 6'10" x 11'1" |
| Voltage | 120v | 120v | 120v |
| Air Compressor | Optional | Optional | Optional |
| Max Thickness of Substrate | 2" | 2.75" | 2.75" |
| Gross and Net Weight | 529 lbs, 386 lbs | 880 lbs, 662 lbs | 1102 lbs gross, 881 lbs net |
| Self Healing Cutting Mat | Standard | Standard | Standard |
| Illuminated Work Table | Standard | Standard | Optional |
| Roll Holder for Glide Beam | Standard | Standard | Standard |
| Roll Cradle for Tabletop | Optional | Optional | Optional |
| CWT Cutter | Optional | Optional | Optional |
| PDF Data Sheet |  | |
Standard Mounting
Company Overview
1428 Assembly
Virtual Demo
Regular Series Assembly
Applying Transfer Tape

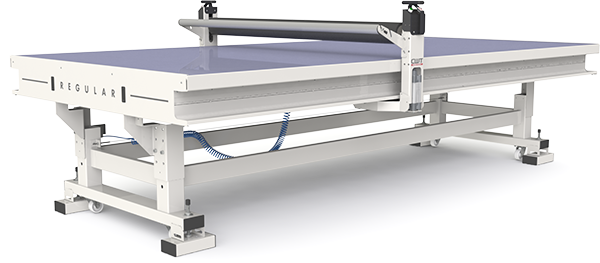

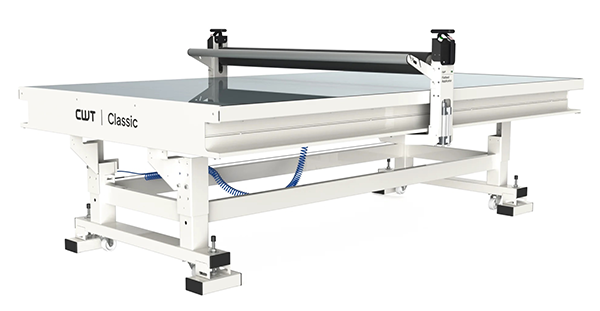

CWT's most popular and original classic model has become an industry favorite among signmakers and digital printers. Regular series is now upgraded to feature a wider working width. It is a robust production machine built for uninterrupted long shifts, equipped with all the essential features, high production capacity, and a worktable that accommodates a wide range of standard substrates and media widths available on the market. 3 year warranty standard on all models.
| 1730 | 1736 | 1740 | 1747 | 2147 | |
|---|---|---|---|---|---|
| Table Size | 5'8" x 9'10" | 5'8" x 11'3" | 5'8" x 13'1" | 5'8" x 15'5" | 5'8" x 11'3" |
| Working Area | 5'5" x 8'8" | 5'5" x 10'6" | 5'5" x 11"7" | 5'8" x 14' | 5'8" x 11'3" |
| Overall Size | 6'9" x 10' | 6'9" x 11'5" | 6'10" x 13'3" | 5'8" x 15'7" | 5'8" x 11'3" |
| Voltage | 120v | 120v | 120v | 5'8" x 11'3" | 5'8" x 11'3" |
| Silent Air Compressor | Optional | Optional | Optional | Optional | Optional |
| Compressor Shelf | Optional | Optional | Optional | Optional | N/A |
| Max Thickness of Substrate | 2.75" | 2.75" | 2.75" | 2.75" | 2.75" |
| Gross and Net Weight | 1224 lbs, 904 lbs | 1400 lbs, 1059 lbs | 1422 lbs gross, 1080 lbs net | 1687 lbs gross, 1290 lbs net | 1984 lbs gross, 1535 lbs net |
| Self Healing Cutting Mat | Standard | Standard | Standard | Standard | Standard |
| Illuminated Work Table | Optional | Optional | Optional | Optional | Optional |
| Side Pockets | Standard | Standard | Standard | Standard | Standard |
| Roll Holder for Glide Beam | Standard | Standard | Standard | Standard | Standard |
| Roll Holder for Bed End | Optional | Optional | Optional | Optional | Optional |
| Lower Roll Holder | Optional | Optional | Optional | Optional | Optional |
| ProShaft 1700 | Optional | Optional | Optional | Optional | Optional |
| Roll Cradle for Tabletop | Optional | Optional | Optional | Optional | Optional |
| Electronic Work Height Adustment | Optional | Optional | Optional | Optional | Optional |
| CWT Cutter | Optional | Optional | Optional | Optional | Optional |
| CWT Bench | Optional | Optional | Optional | Optional | N/A |
| PDF Data Sheet | | | | | |
Standard Mounting
Company Overview
1428 Assembly
Virtual Demo
Regular Series Assembly
Applying Transfer Tape

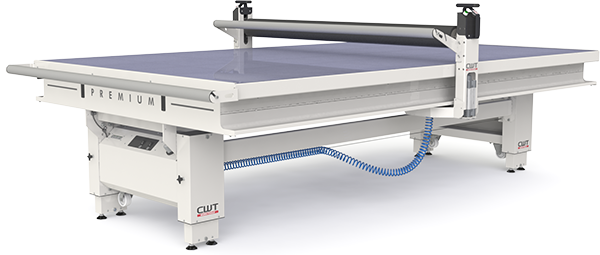

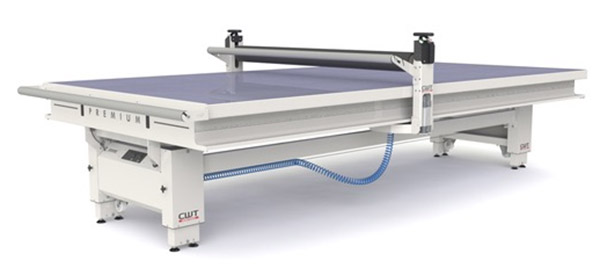

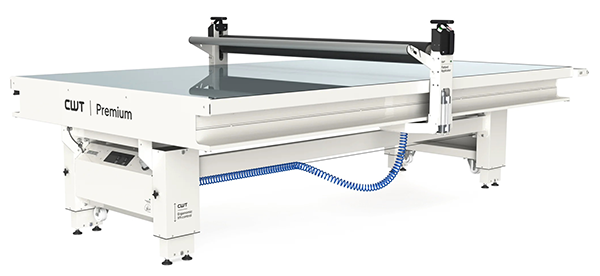

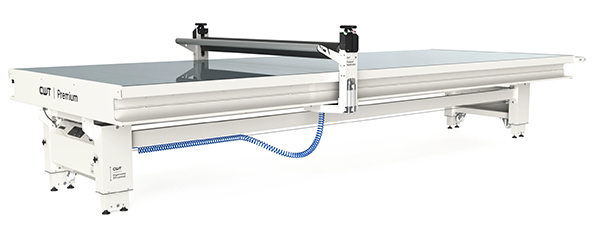

CWT's most refined flatbed applicator, ideal for high-volume production. The CWT Premium Series is equipped with advanced features such as electronic height adjustment, an illuminated worktable, and roll holders, making it perfect for extended, uninterrupted shifts.
| 1730 | 1736 | 1740 | 1747 | |
|---|---|---|---|---|
| Table Size | 5'8" x 9'10" | 5'8" x 11'3" | 5'8" x 13'1" | 5'8" x 15'5" |
| Working Area | 5'5" x 8'8" | 5'5" x 10'6" | 5'5" x 11"7" | 5'8" x 14' |
| Overall Size | 6'9" x 10' | 6'9" x 11'5" | 6'9" x 13'3" | 5'8" x 15'7" |
| Voltage | 120v | 120v | 120v | 5'8" x 11'3" |
| Silent Air Compressor | Optional | Optional | Optional | Optional |
| Compressor Shelf | Optional | Optional | Optional | Optional |
| Max Thickness of Substrate | 2.75" | 2.75" | 2.75" | 2.75" |
| Gross and Net Weight | 1257 lbs, 937 lbs | 1499 lbs, 1157 lbs | 1466 lbs gross, 1124 lbs net | 1753 lbs gross, 1356 lbs net |
| Self Healing Cutting Mat | Standard | Standard | Standard | Standard |
| Shipping Dimensions | 11'2" x 1'10" x 6'11" | 12'6" x 1'10" x 6"11" | 13'8" x 1'10" x 6'11" | 16'3" x 1'10" x 6'11" |
| Illuminated Work Table | Standard | Standard | Standard | Standard |
| Side Pockets | Standard | Standard | Standard | Standard |
| Roll Holder for Glide Beam | Standard | Standard | Standard | Standard |
| Roll Holder for Bed End | Standard | Standard | Standard | Standard |
| Lower Roll Holder | Optional | Optional | Optional | Optional |
| ProShaft 1700 | Optional | Optional | Optional | Optional |
| Roll Cradle for Tabletop | Optional | Optional | Optional | Optional |
| Electronic Work Height Adustment | Optional | Optional | Optional | Optional |
| CWT Cutter | Optional | Optional | Optional | Optional |
| CWT Bench | Optional | Optional | Optional | Optional |
| PDF Data Sheet | | | | |
Standard Mounting
Company Overview
1428 Assembly
Virtual Demo
Regular Series Assembly
Applying Transfer Tape
| Linear Cutter - 5'7" | $1395 |
| Linear Cutter - 8'2" | $1495 |
| Short Side Brackets | $500 |
| Long Side Brackets | $500 |
| Electronic Lift | $5995 |
| Telescopic Reach Cutter | $140 |
| 10" Sticky Roller with handle | $200" |
| Sticky Pad - 50 sheets | $50 |
| Silent Air Compressor | $400 |
| Replacement Cutting Mat | Inquire |
